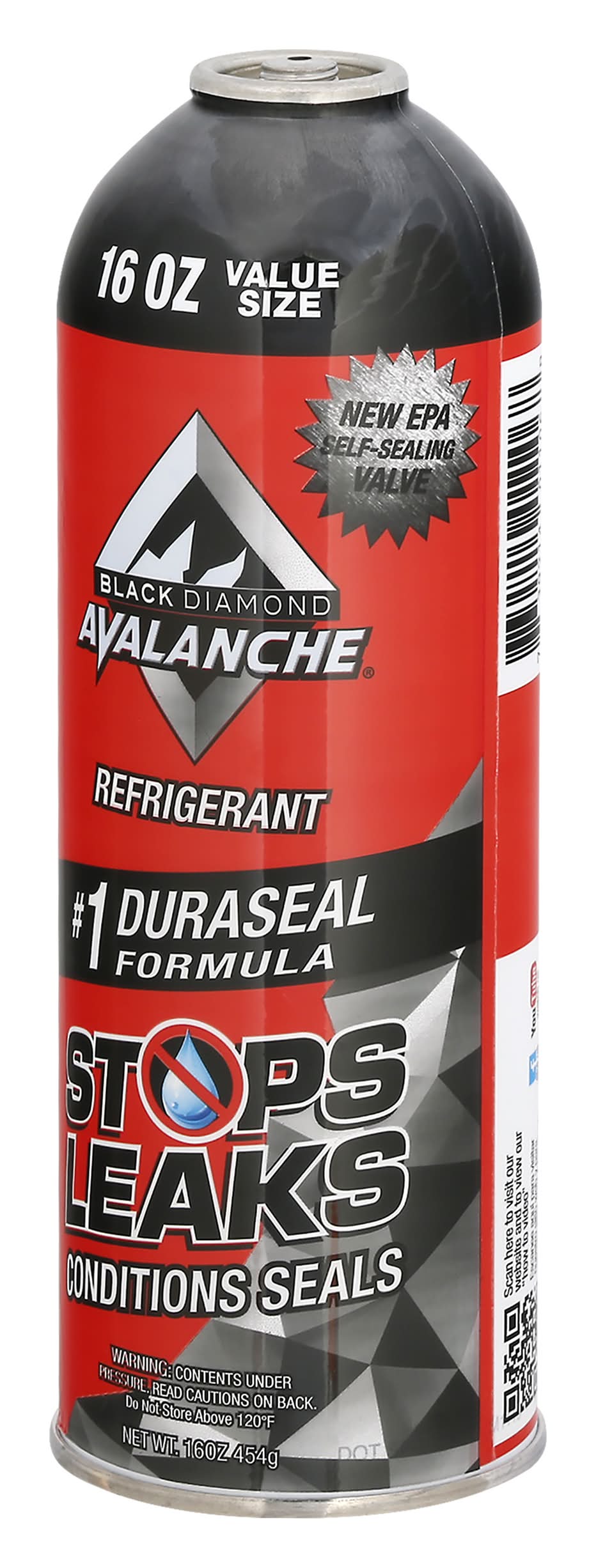

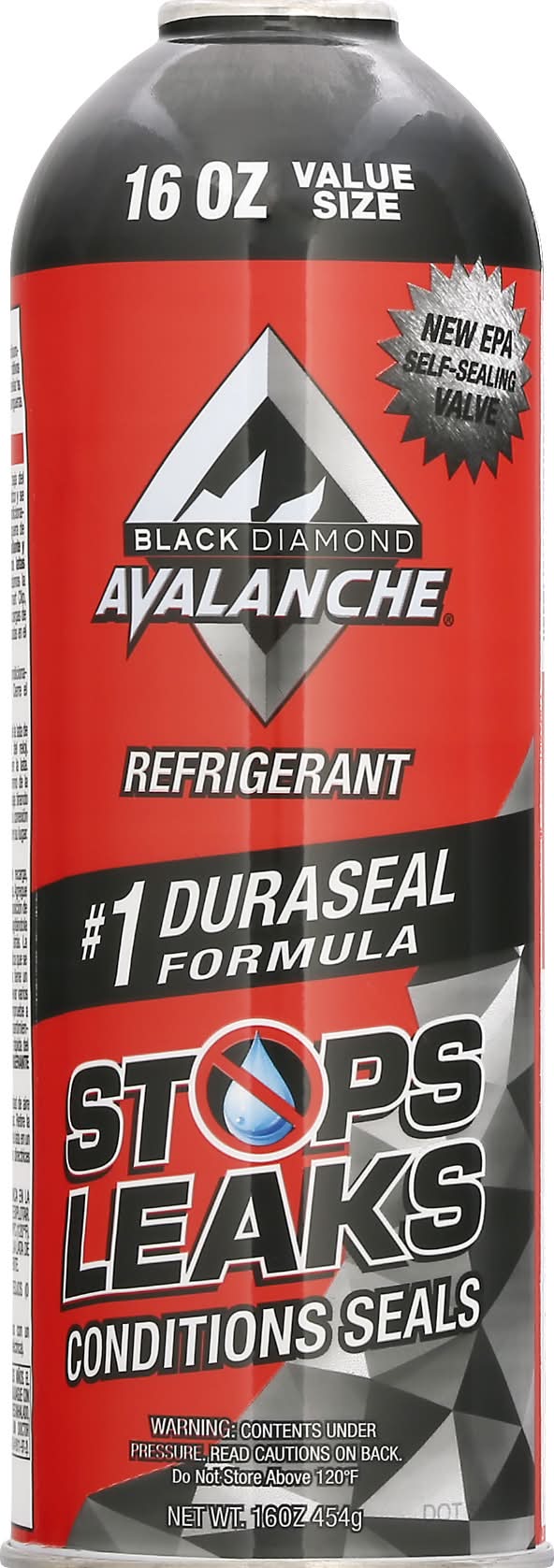

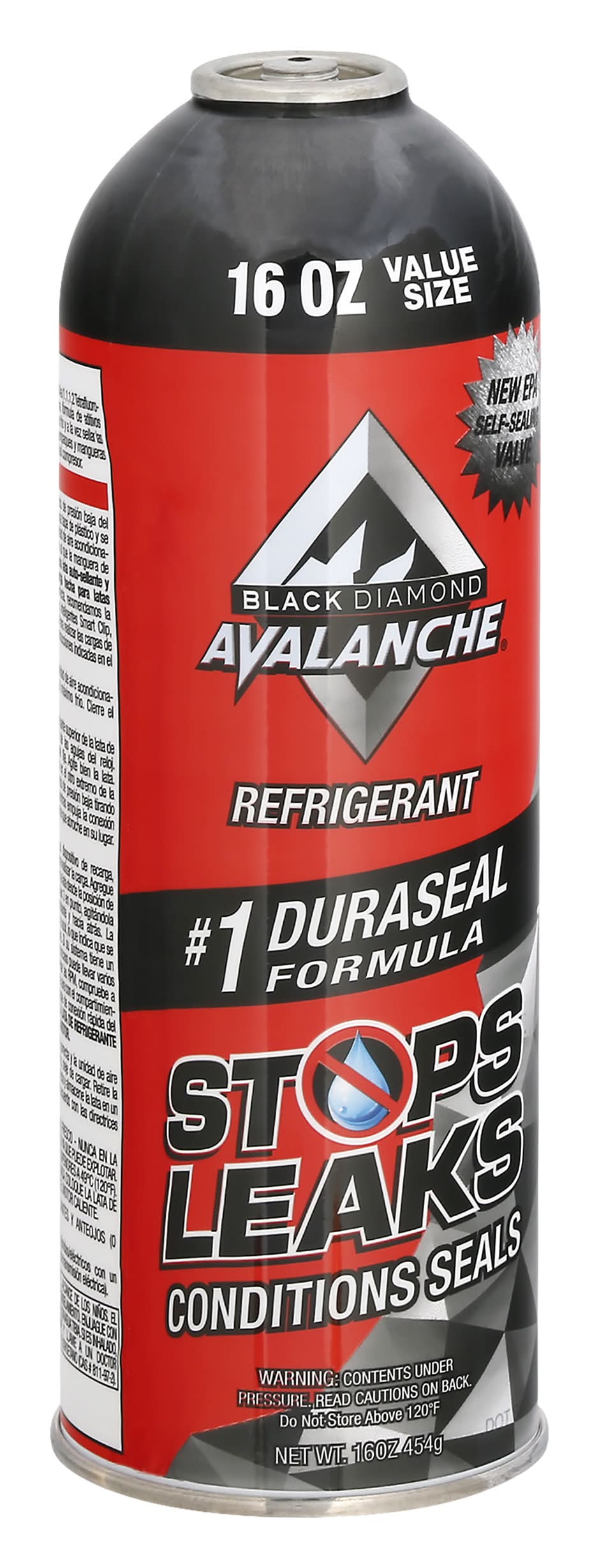

Avalanche Black Diamond Refrigerant (1 lbs)

New EPA self-sealing valve. No. 1 Duracel formula. Stop leaks. Condition seals. Black Diamond Avalanche contains 15 oz of R-134a and 1 oz of no. 1 duraseal formula to ensure maximum cold air while sealing common rubber o-ring, gasket and hose leaks and extending compressor life. www.acavalanche.com. Scan here to visit our website and to view our how to video. Faceook like us. Youtube watch us. Made in USA from US & imported parts. TSI Products,

New EPA self-sealing valve. No. 1 Duracel formula. Stop leaks. Condition seals. Black Diamond Avalanche contains 15 oz of R-134a and 1 oz of no. 1 duraseal formula to ensure maximum cold air while sealing common rubber o-ring, gasket and hose leaks and extending compressor life. www.acavalanche.com. Scan here to visit our website and to view our how to video. Faceook like us. Youtube watch us. Made in USA from US & imported parts. TSI Products,

Contains: None Additives: None

Contains: None Additives: None

Directions for use: Directions: not store above 120 degrees F. Installation Instructions: 1. Locate the vehicle's low side service port. This port will often have a plastic cap and is located between the a/c compressor and the evaporator. It is only port to which the recharge hose will connect. This is a self-sealing can and requires a recharge hose made for self-sealing cans. We recommend the Avalanche part AVL402CS recharge hose with smart clips for correct fill. Always follow the instructions from the device to properly charge. 2. Start the engine and turn air conditioner to maximum cool and maximum air flow. Close passenger compartment. 3. Tighten the recharge hose to the top of the Avalanche can by turning it clockwise. Make sure it is firmly attached. Shake can well. Connect the quick connect coupler on the other end of the hose to the low side service port by pulling the connector ring back as you push the fitting onto the service port. Make sure it locks into place. Do not overcharge/do not vent. 4. Following the instructions on your recharge device, hold can upright to charge. Add refrigerant while fully rotating the can from a 12 o'clock position to 3 o'clock position, continually agitating (sweeping) can back and forth. The word Avalanche will turn from white to blue indicating refrigerant is being added to the system. If your system is very low in refrigerant this process can take several minutes. While slightly increasing your RPM, check vent temperature often with passenger compartment closed. Remove quick-connect coupler from service port. Never refrigerant can on any hot engine part. 5. When you have the correct fill and your air conditioner is blowing cold, stop charging. Remove the charging hose from the service port and store can in a cool, dry place or discard according to state or local guidelines. Storage recommendation: Do not store above 120 degrees F.

Directions for use: Directions: not store above 120 degrees F. Installation Instructions: 1. Locate the vehicle's low side service port. This port will often have a plastic cap and is located between the a/c compressor and the evaporator. It is only port to which the recharge hose will connect. This is a self-sealing can and requires a recharge hose made for self-sealing cans. We recommend the Avalanche part AVL402CS recharge hose with smart clips for correct fill. Always follow the instructions from the device to properly charge. 2. Start the engine and turn air conditioner to maximum cool and maximum air flow. Close passenger compartment. 3. Tighten the recharge hose to the top of the Avalanche can by turning it clockwise. Make sure it is firmly attached. Shake can well. Connect the quick connect coupler on the other end of the hose to the low side service port by pulling the connector ring back as you push the fitting onto the service port. Make sure it locks into place. Do not overcharge/do not vent. 4. Following the instructions on your recharge device, hold can upright to charge. Add refrigerant while fully rotating the can from a 12 o'clock position to 3 o'clock position, continually agitating (sweeping) can back and forth. The word Avalanche will turn from white to blue indicating refrigerant is being added to the system. If your system is very low in refrigerant this process can take several minutes. While slightly increasing your RPM, check vent temperature often with passenger compartment closed. Remove quick-connect coupler from service port. Never refrigerant can on any hot engine part. 5. When you have the correct fill and your air conditioner is blowing cold, stop charging. Remove the charging hose from the service port and store can in a cool, dry place or discard according to state or local guidelines. Storage recommendation: Do not store above 120 degrees F.
