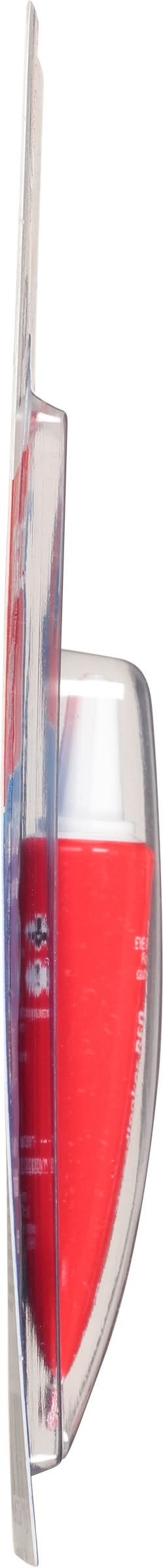

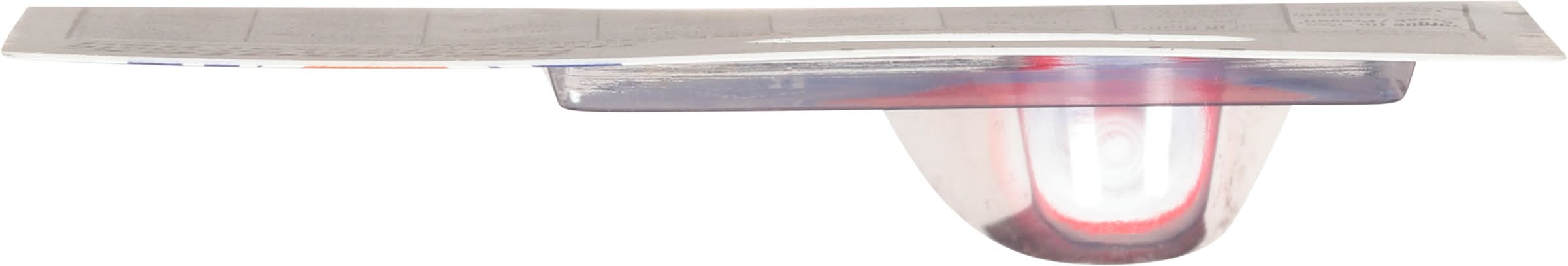

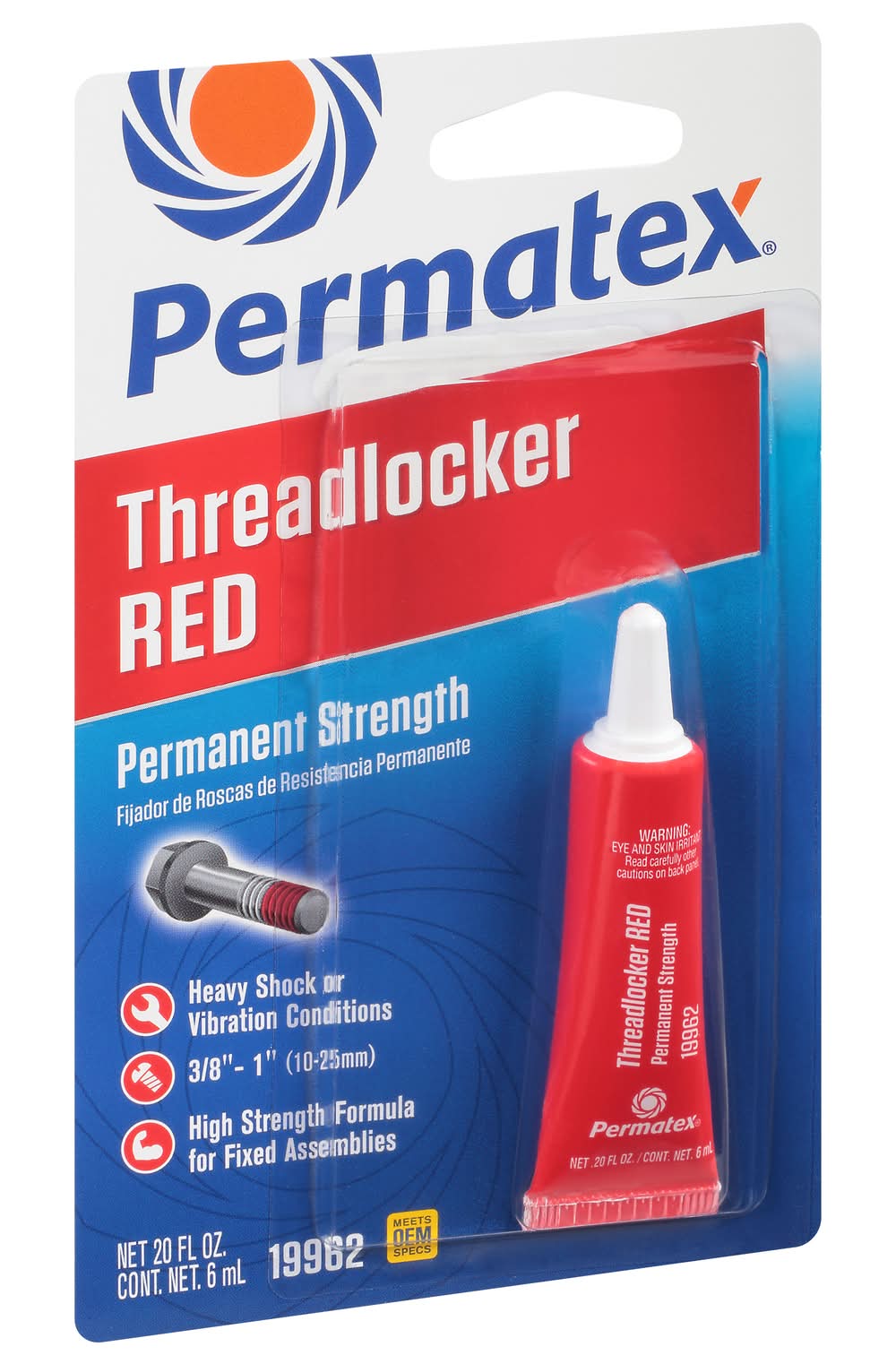

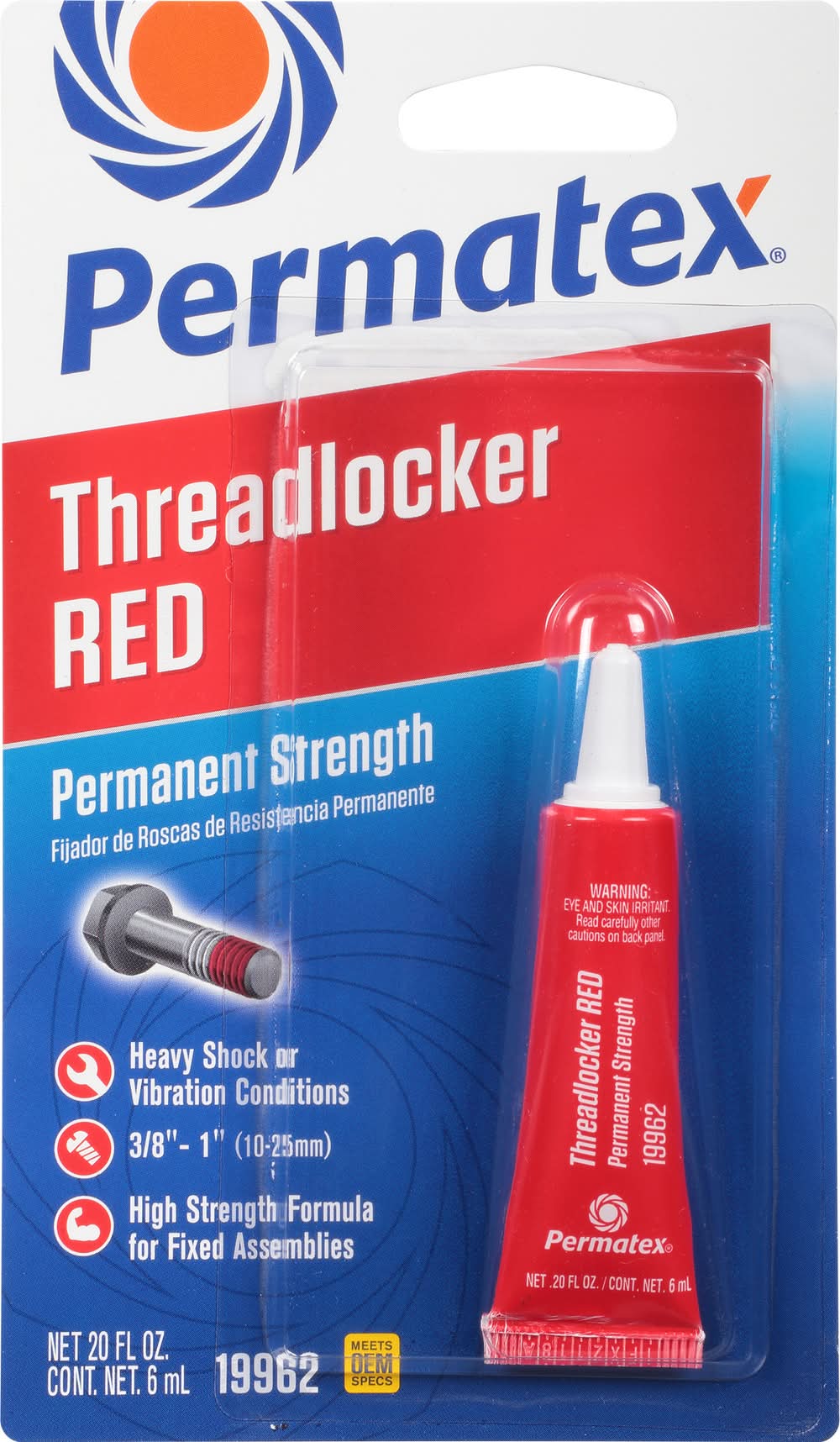

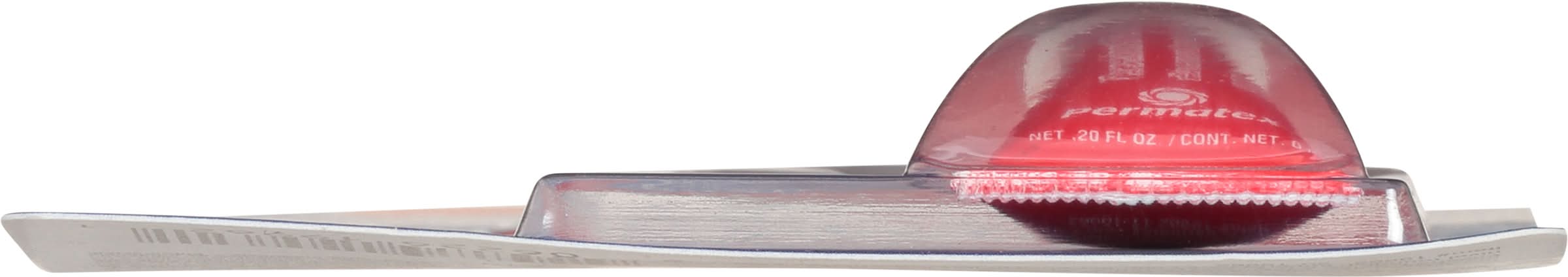

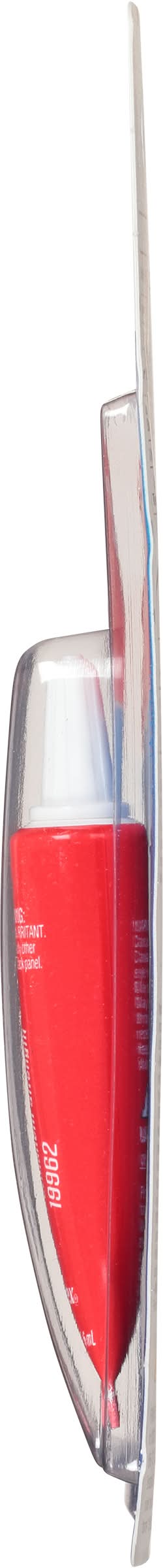

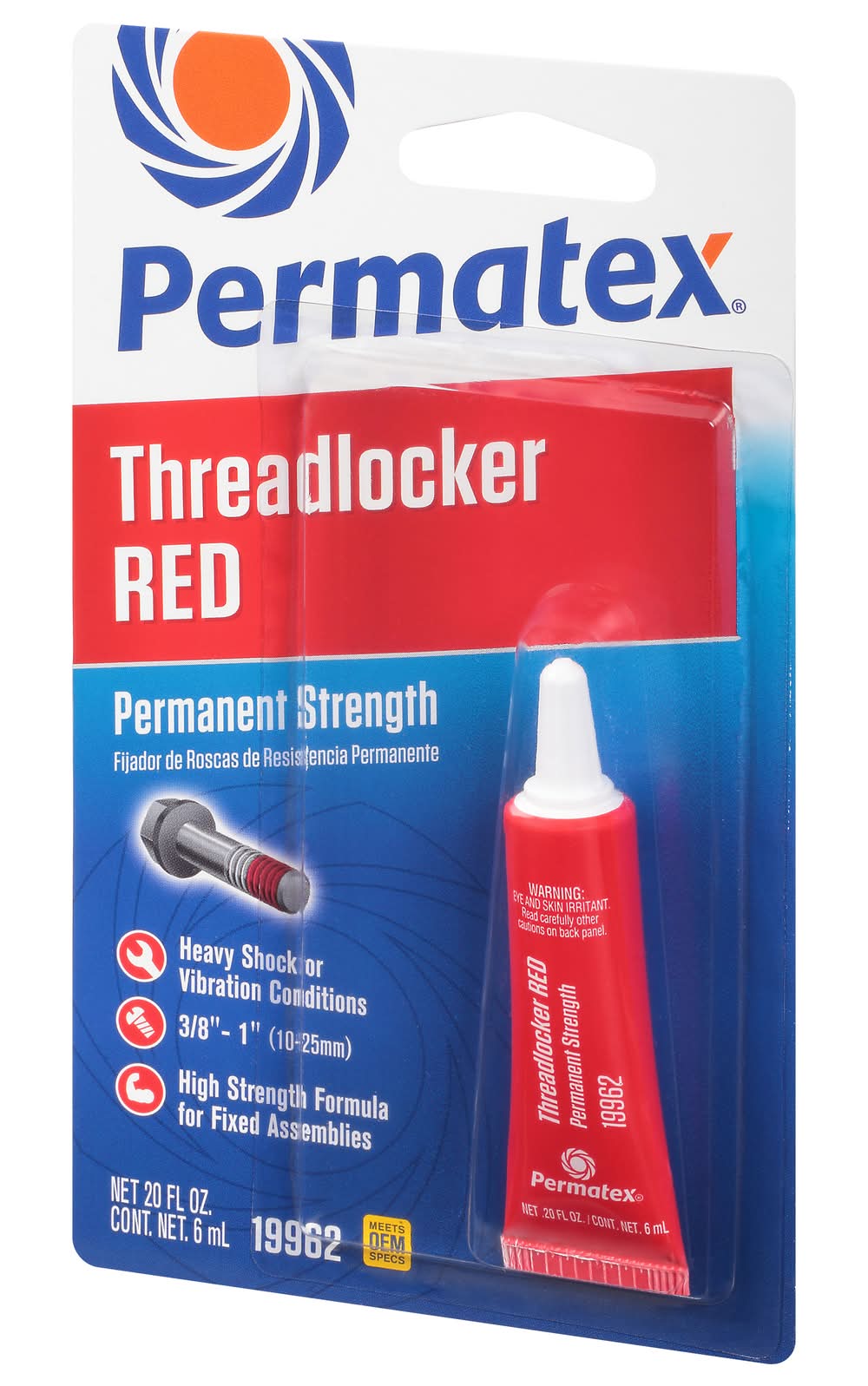

Permatex Permanent Strength Red Threadlocker (20 fl oz)

20 fl oz
Details

Heavy shock or vibration conditions. 3/8 in. - 1 in. (10-25 mm). High strength formula for fixed assemblies. Meets OEM specs. Product Name: Low Strength; Item no. Example: 24024; Color: Purple; Fastener Size: Up to 1/4 in. (up to 6mm); Torque (in. lbs.) Break/Prevail: 55 / 20; Shear Strength: 500 psi; Maximum Temperature: +300 degrees F (+149 degrees C); Common Applications: Set screws, calibration screws, adjustment screws, meters and gauges; When to Apply: Before assembly. Product Name: Medium Strength; Item no. Example: 24200; Color: Blue; Fastener Size: Up to 1/4 in. to 3/4 in. (6 mm to 20 mm); Torque (in. lbs.) Break/Prevail: 155 / 50; Shear Strength: NA; Maximum Temperature: +300 degrees F (+149 degrees C); Common Applications: Machine tools and presses, pumps and compressors, mounting bolts, and gear boxes; When to Apply: Before assembly. Product Name: Permanent Strength; Item no. Example: 19962; Color: Red; Fastener Size: 3/8 in. to 1 in. (10 to 25 mm); Torque (in. lbs.) Break/Prevail: 190 / 275; Shear Strength: 2250 psi; Maximum Temperature: +300 degrees F (+149 degrees C); Common Applications: Cylinder block bolts, ring gear bolts, and transmission stud bolts; When to Apply: Before assembly. Product Name: High Strength; Item no. Example: 27100; Color: Red; Fastener Size: 3/8 in. to 1 in. (10 to 25 mm); Torque (in. lbs.) Break/Prevail: 250 / 250; Shear Strength: NA; Maximum Temperature: +300 degrees F (+149 degrees C); Common Applications: Cylinder block and rocker arm studs, shock absorber mounts and ring gear bolts; When to Apply: Before assembly. Product Name: High Temperature; Item no. Example: 27200; Color: Red; Fastener Size: 3/8 in. to 1.5 in. (10 to 38 mm); Torque (in. lbs.) Break/Prevail: 200 / 225; Shear Strength: 3000 psi; Maximum Temperature: +300 degrees F (+149 degrees C); Common Applications: Camshaft sprocket bolts, idler bearings, transmission input/.output shaft threads, ring gear or shock bolts; When to Apply: Before assembly Product Name: Large Diameter; Item No. Example: 27740; Color: Red; Fastener Size: 1 in. and larger (25 mm and large); Torque (in. lbs.) Break/Prevail: 275 / 250; Shear Strength: 2500 psi; Maximum Temperature: +300 degrees F (+149 degrees C); Common Applications: Frame brackets, suspension fasteners, shock absorber, mounts and wheel studs; When to Apply: Before assembly. Product Name: Penetrating Grade; Item no. Example: 2900; Color: Green; Fastener Size: no. 2 to 1/2 in. (2.2 to 12 mm); Torque (in. lbs.) Break/Prevail: 65 / 225; Shear Strength: 1500 psi; Maximum Temperature: +300 degrees F (+149 degrees C); Common Applications: Preassembled fasteners instrumentation screws, electrical connectors, carburetors; When to Apply: After assembly. Permatex threadlockers fixture in approximately 20 minutes and are fully cured within 24 hours. Permatex surface prep activator reduces fixture time to 5 minutes. Preceding values are for 3/8 in. - 16 steel "as received" nuts and bolts at 72 degrees F (22 degrees C). www.permatex.com Toll Free: 866-732-9502. Assembled in U.S.A. with U.S. and global materials. Illinois Tool Works Inc.,

Show more
Directions

Directions for use: Usage of instructions:1. Clean and dry parts using Permatex Surface Prep activator. 2. Shake threadlocker before each use. 3. Remove cap and snip nozzle tip. 4. Apply to threaded areas and assemble parts. Refer to Technical Data Sheet for complete information. NOTE: Threadlocker is for use on metal parts and is not to be used on plastics. For Red Threadlocker, cured product must be heated to 500 degrees F (260 degrees C) before parts will separate. - Directions: 1. Clean and dry parts using Permatex Surface Prep activator. 2. Shake threadlocker before each use. 3. Remove cap and snip nozzle tip. 4. Apply to threaded areas and assemble parts. Refer to Technical Data Sheet for complete information. NOTE: Threadlocker is for use on metal parts and is not to be used on plastics. For Red Threadlocker, cured product must be heated to 500 degrees F (260 degrees C) before parts will separate. Precautionary Statements - Storage: Protect from sunlight. Keep container tightly closed. Store locked up. Precautionary Statements – Disposal: Dispose of contents/container to an approved waste disposal plant. Storage recommendation: Precautionary Statements - Storage: Protect from sunlight. Keep container tightly closed. Store locked up. Precautionary Statements – Disposal: Dispose of contents/container to an approved waste disposal plant.

Show more
